Wilson Manifolds High Flow Throttle Bodies were developed using the latest computer modeling software and test equipment available to produce designs that yield the maximum flow per square inch of cross-sectional area. This results in maximum power for any given throttle body type and size. Four barrel style throttle bodies are designed to work with our line of billet spacers and incorporate a tapered and radiused throttle bore and precisely machined progressive linkage for smooth throttle operation. They also feature inward opening throttle blades to eliminate any part throttle directional influence by the blades that can cause poor air distribution. We have also redesigned our Dominator style throttle bodies to incorporate improved throttle linkage and to significantly reduce overall mass. All throttle bodies feature stainless throttle blades to control vibration and reduce thermal expansion Throttle blades are fastened to the throttle shaft using aircraft quality hardware that is both Loctited and peened to assure positive retention of the blades. Throttle shafts are machined to decrease their cross-sectional area, which increases the actual cross-section available for airflow. All throttle bodies are machined from billet 6061-T6 aluminum on precision CNC machining centers for consistent quality and light weight. High flow throttle bodies are available in 4500 and 4150 four-barrel styles as well as many single bore sizes in Ford style.

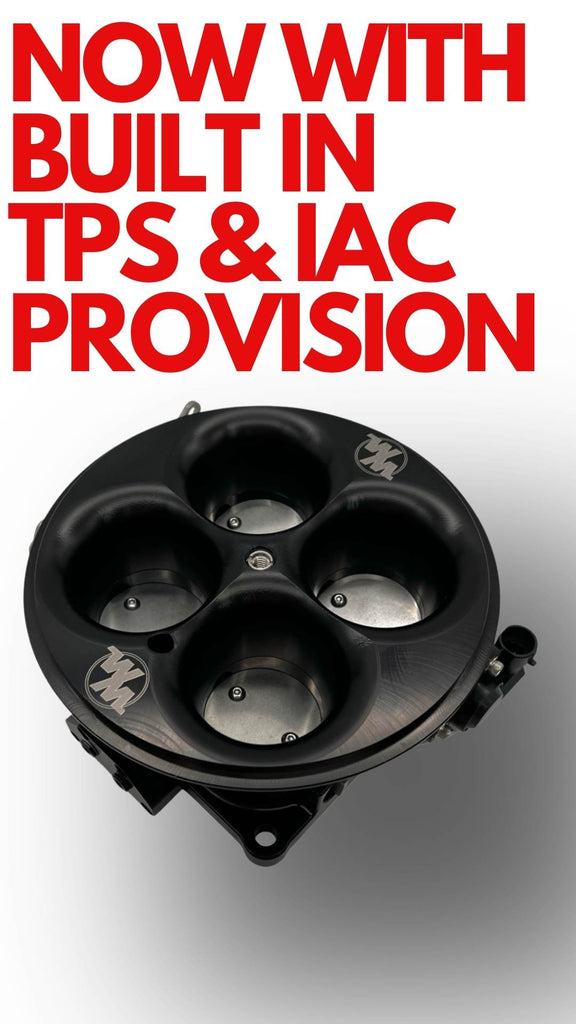

Holley plug style TPS is included built in with the Throttle Body.
This throttle body DOES HAVE an IAC (idle air control) provision but the sensor is not included with purchase.
IAC Part # 488212
This Redesigned throttle body DOES HAVE an IAC (idle air control) provision. Block off plate is included with the TB.
Throttle Body Only: 1745cfm
w/ 1.5" tapered spacer: 1880cfm
