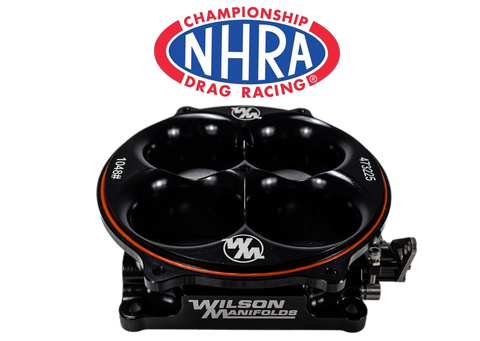

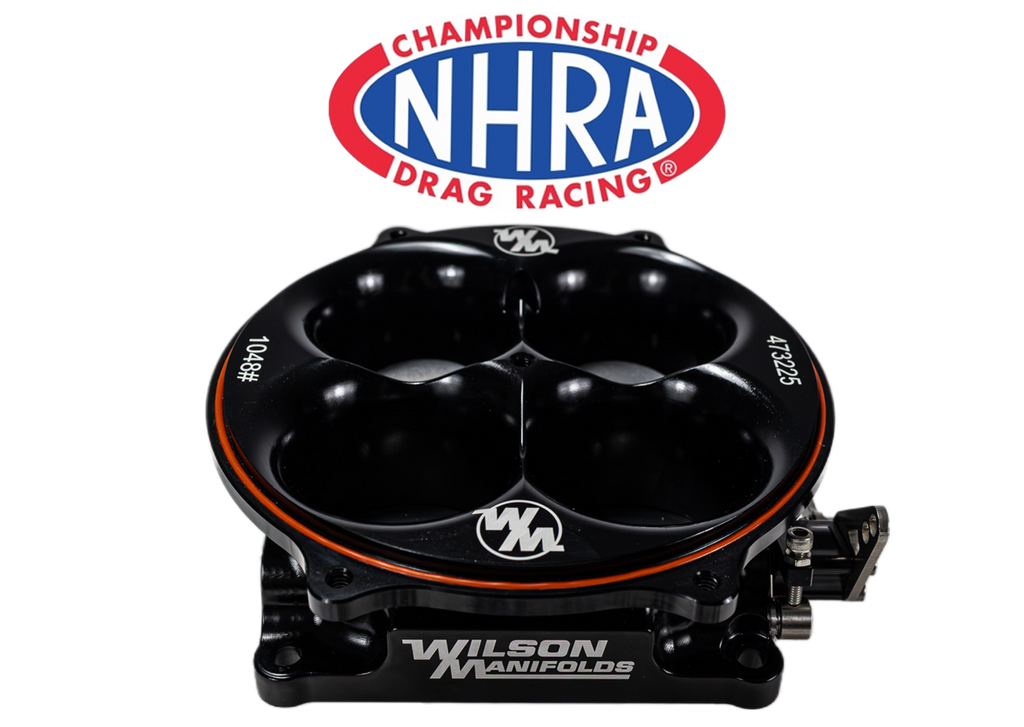

NHRA Approved for 2027
AVAILABLE FOR PRE-ORDER
Engineered for Maximum Horsepower & Durability

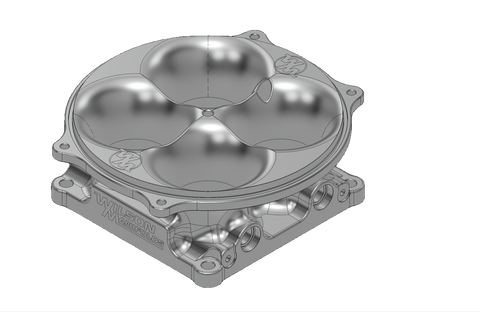

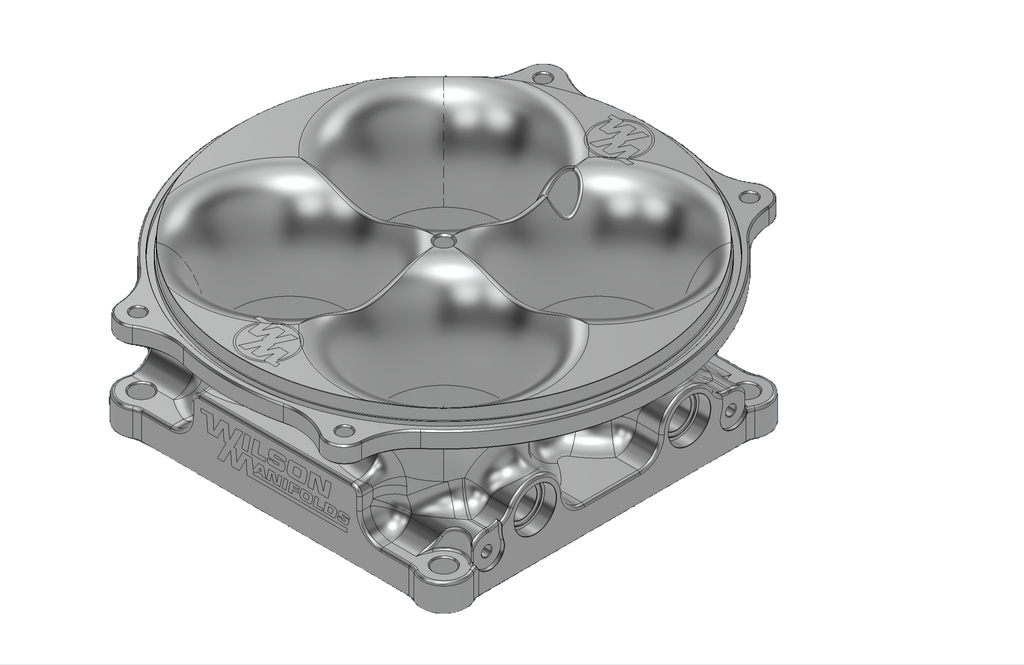

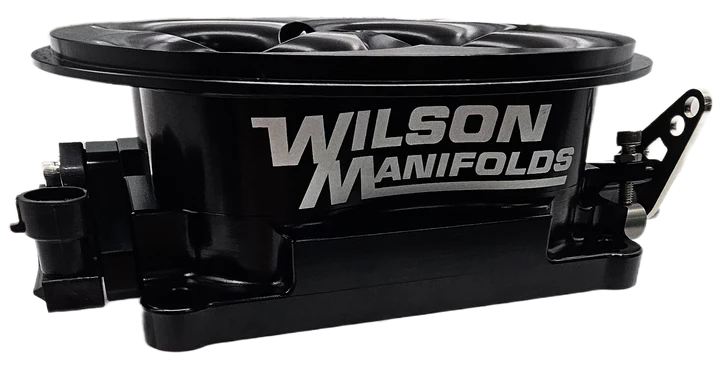

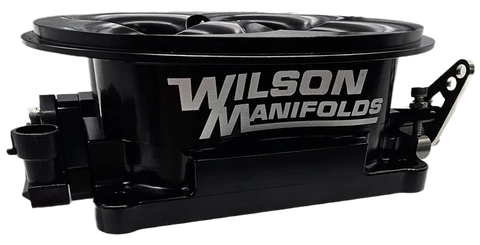

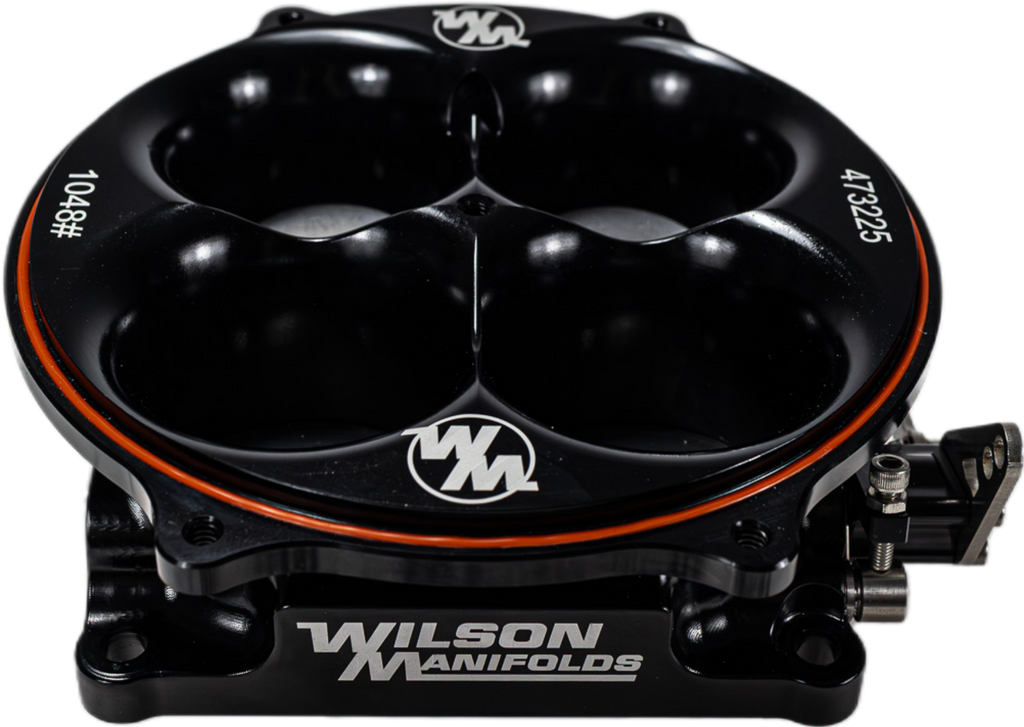

New 2.25" Bore - One piece Billet Aluminum throttle body with TPS and IAC provision.
-
Air Supremacy Design – The Wilson 4500 flows massive air volume with redesigned internals and reduced overall mass for peak high-RPM power.
-
Compatible with Wilson Billet Spacers – Designed to work in tandem for maximum flow and throttle response.
-

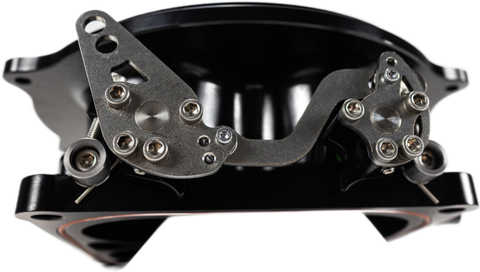

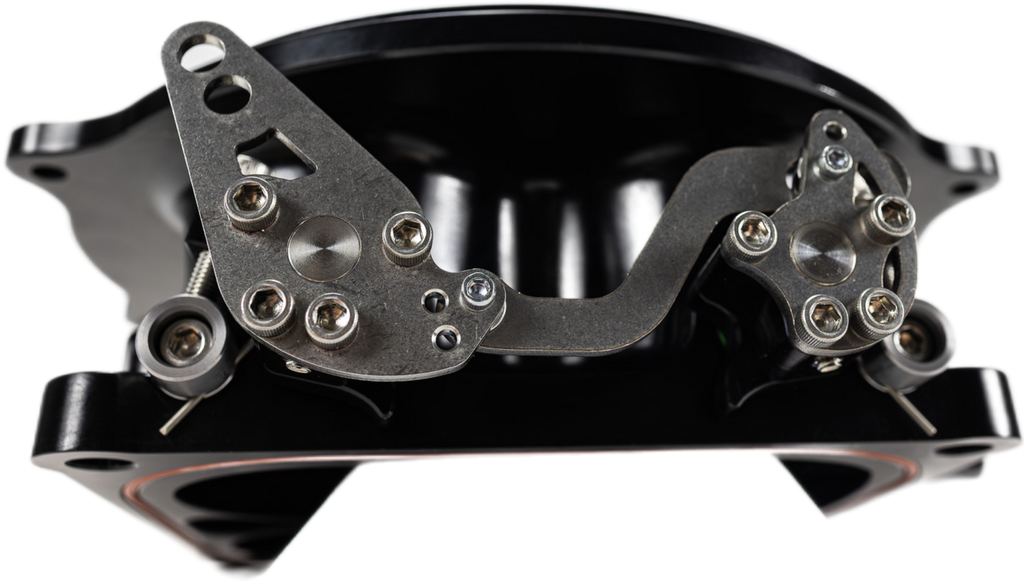

Stainless Steel 3-Way Adjustable Linkage – Precision-machined for strength, adjustability, and reliability under extreme conditions.
-
Sealed Roller Bearings – Replaces bushings to eliminate wear and air leaks, ensuring long-term consistent performance.
-
Slim Throttle Shafts – Machined to reduce cross-sectional area and increase net airflow.
-
Aircraft-Grade Blade Fastening – Throttle blades are Loctited and peened for secure, high-RPM retention.
-

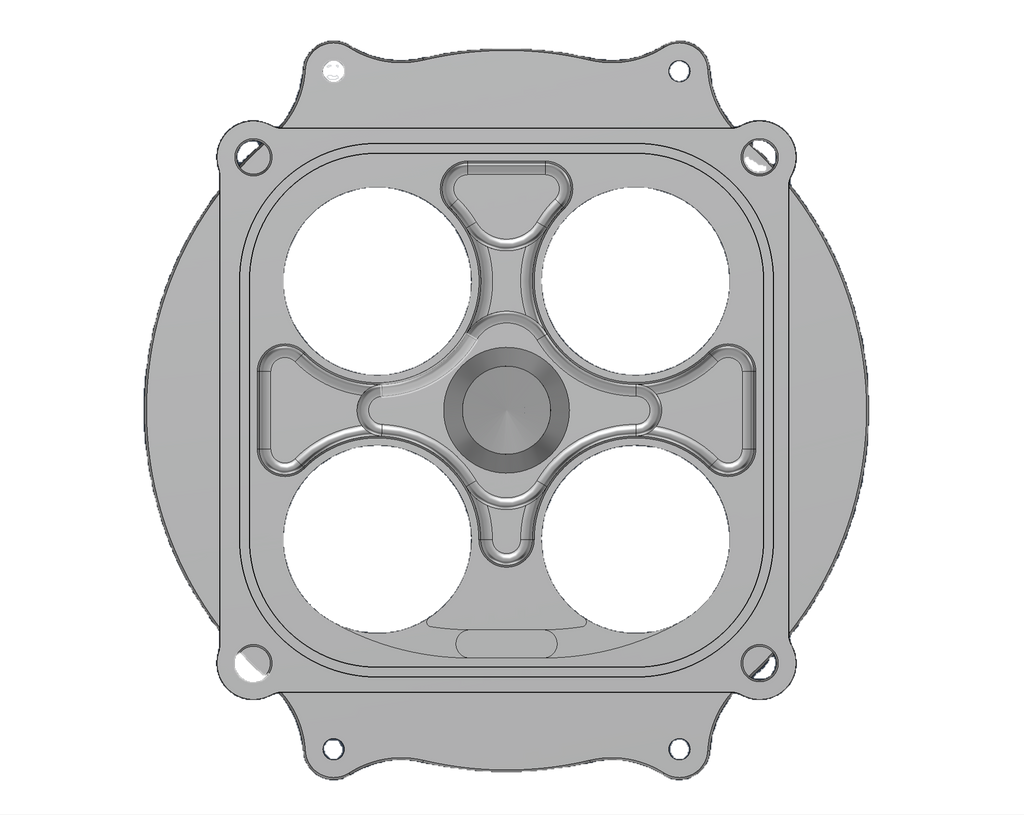

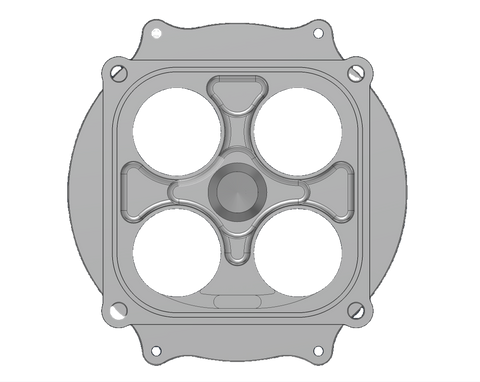

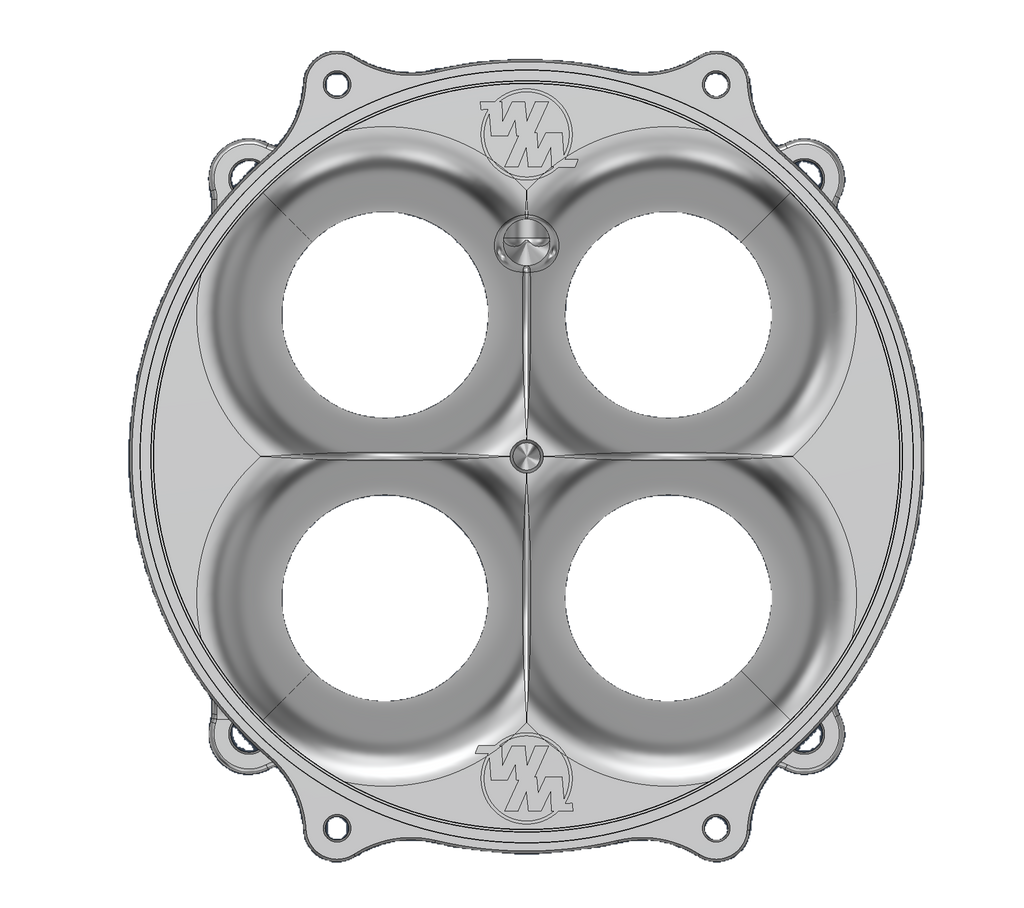

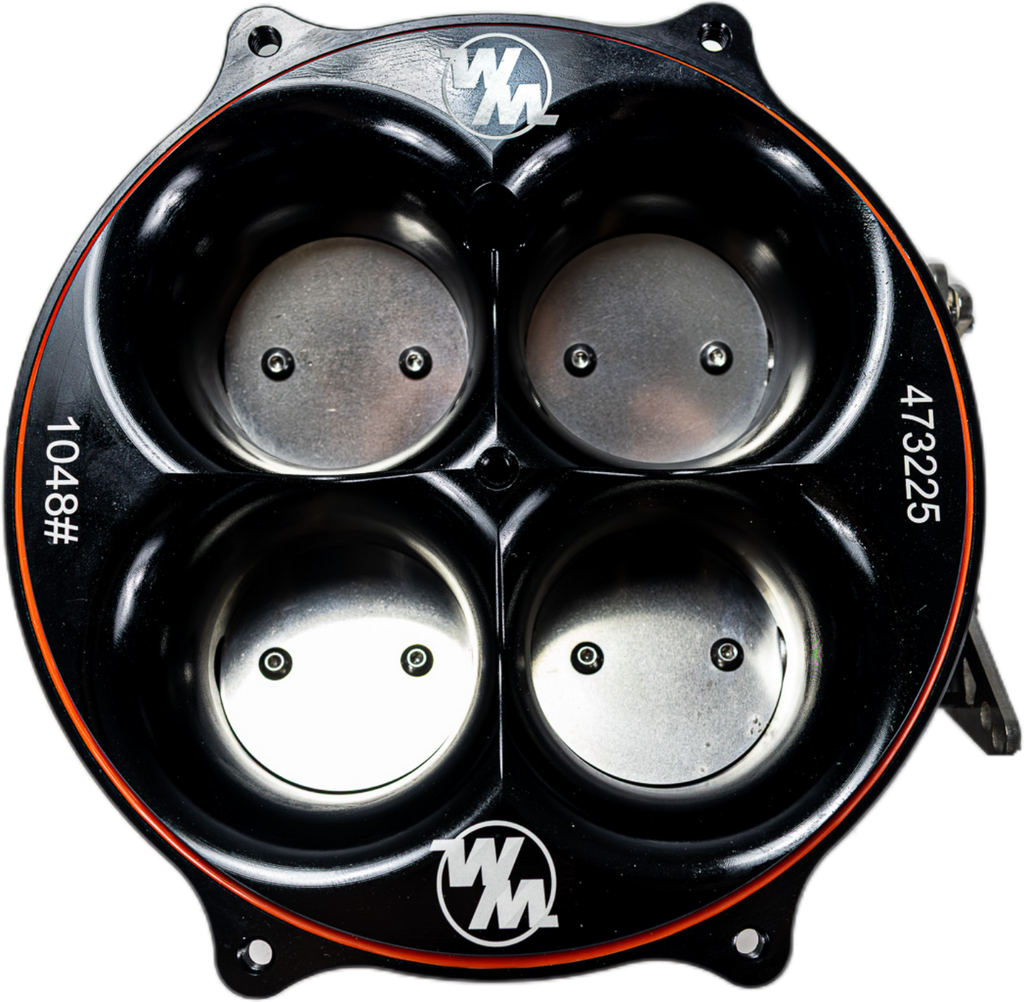

Tapered & Radiused Bores – Developed using cutting-edge modeling to optimize airflow per square inch for maximum horsepower.
-

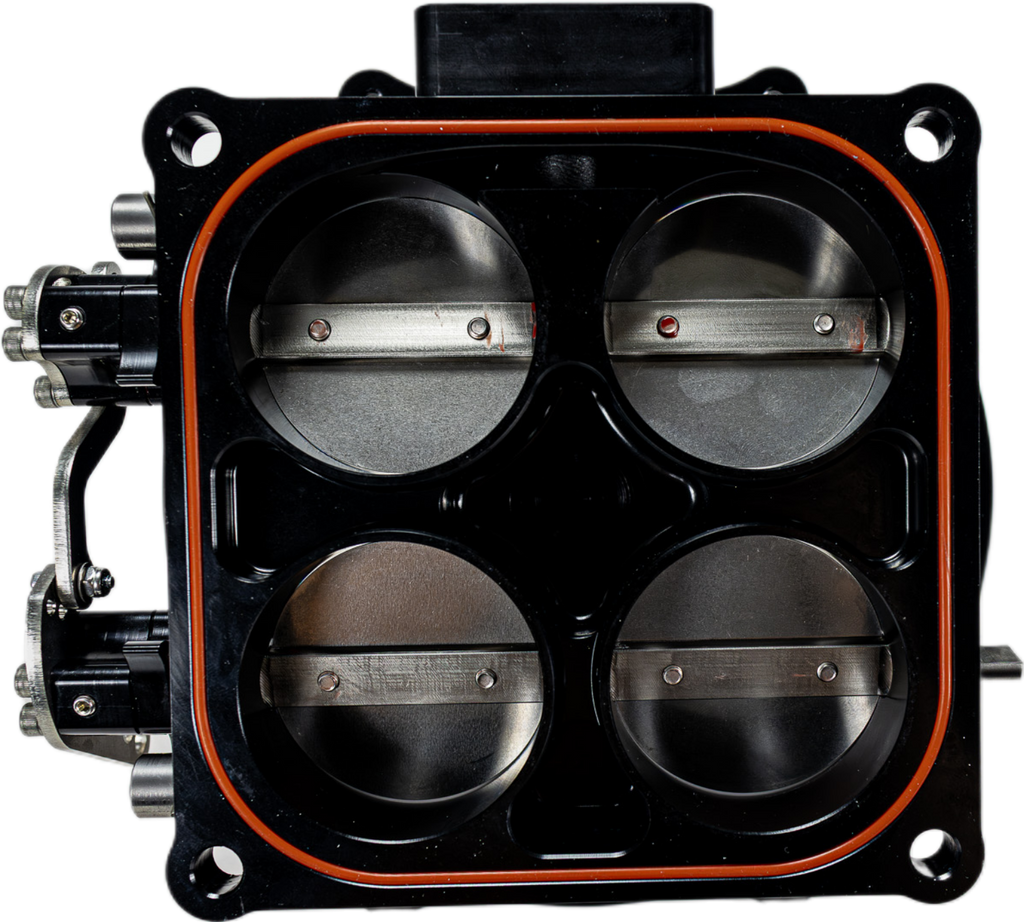

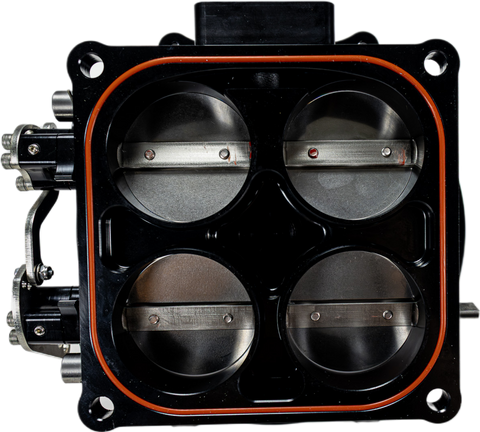

Inward Opening Throttle Blades – Minimizes directional turbulence and improves air distribution at part throttle.
-
Built-In TPS & IAC Provisions – Holley plug-style TPS is pre-installed. IAC port included; block-off plate comes standard. Sensor sold separately.
-

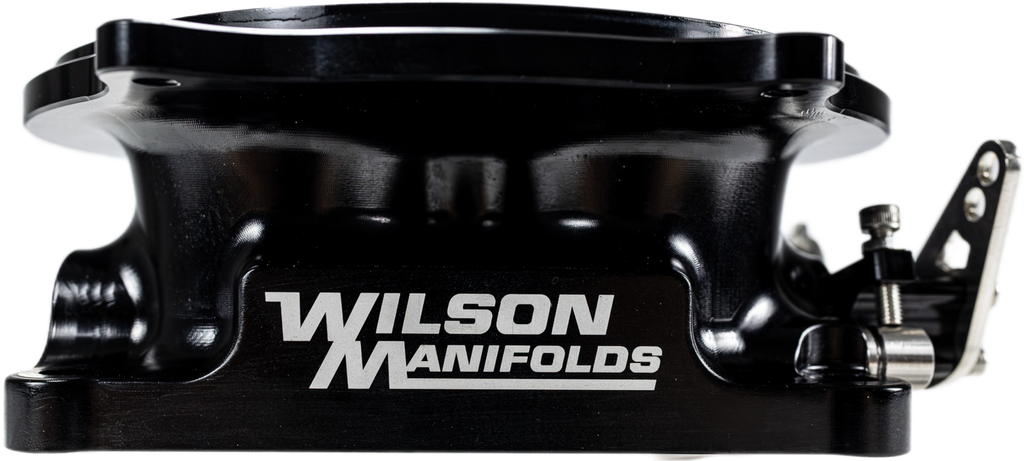

Billet 6061-T6 Aluminum Body – CNC-machined for lightweight strength, repeatable tolerances, and superior heat resistance. (Billet 5 Axis part)
-

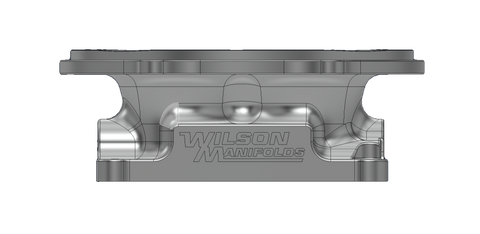

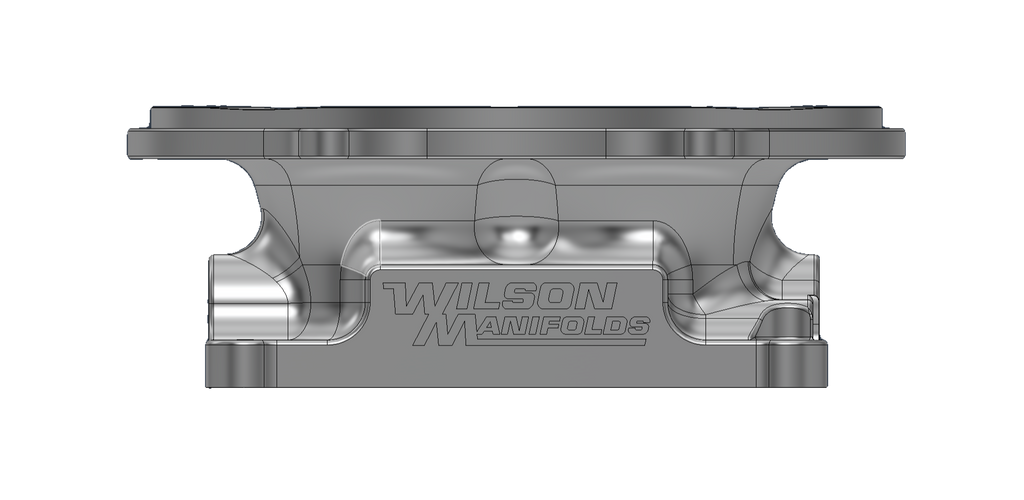

Compact Profile – Stands 2.785" tall, allowing for flexible packaging in engine bays.
